The VKF 20 XL raises the standards of the Compact series, offering aincreased loading area designed for those who need to manage bulky products or larger batches.
This extended version not only adds space, but also expands the possibilities of customization: its structure is designed forPunch integration, coding systems and other specific applications on the line.
It is the ideal solution for those looking for maximum operational versatility and you want to configure your tailor-made thermoformer for complex production needs.
The VKF20XL was created for those who do not want to compromise between compactness and performance. Same reliability as the VKF20, with an expanded load area and the flexibility to integrate punches and custom applications. The ideal solution for more demanding productions, without sacrificing simplicity.
Developed to fit into production lines where space is a resource
It supports punches and additional applications to adapt to complex manufacturing needs.
Ergonomic stainless steel design that allows quick and deep cleaning
Ergonomic design that allows immediate access to all components to minimize downtime
Designed to meet the specific needs of your market, this technology guarantees excellent performance and maximum protection for a wide range of products.
Measurable performance and consistent reliability. View the technical specifications or download the full data sheet to discover the technology that powers your production
Total machine length|3900 Width|1130 Height|1930 Load area|2 free steps with 320mm machine pitch Bottom film|322-342-362-382-422 Maximum forming tank depth|80 or 120 Lower reel diameter|300 Top reel diameter|250 Coil inner diameter|3" (76mm) Maximum machine wheel|320mm Internal pump|up to 300m³/h Power supply|7.5 Kw (F422 P320) Air pressure|6 ÷ 7 bar Compressed air consumption|1150 NI/min (P320 - H120 - 7 cycles/min) Water consumption|150 lt/h2
Choose the ideal storage method to enhance your production standards and ensure long-lasting freshness.
Map
Sealing
Vacuum

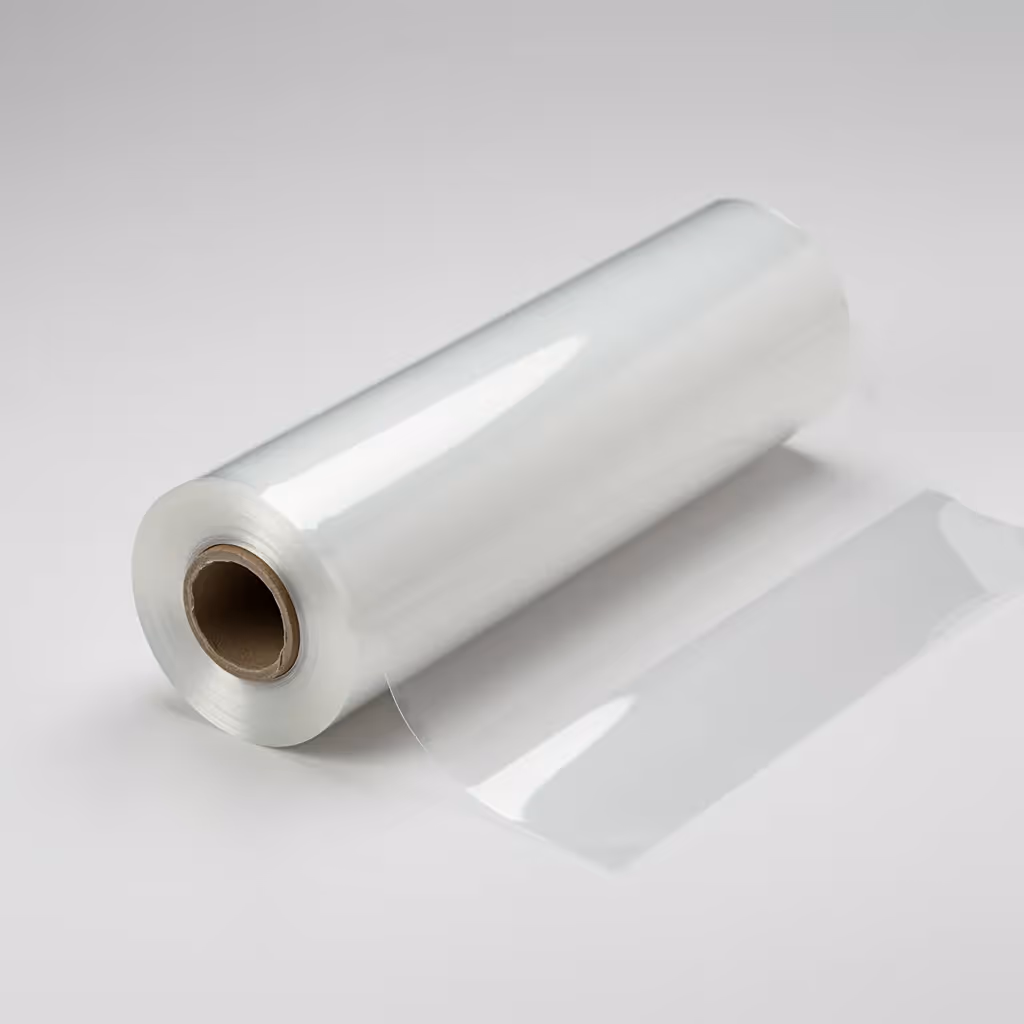

From the management of flexible and rigid films To the attention of the new sustainable materials: VKF thermoformers are designed to offer maximum technical versatility.
Thanks to a precise control of temperatures and times, we work on a wide range of thicknesses, aiming to guarantee hermetic welds and integrity of the pack.
Our technology is designed to accommodate the evolution of recyclable materials, subject to technical assessment to always ensure the required quality standard.
From compact solutions to high-throughput systems: explore the models in the Veripack range and find the perfect technology to scale your business.
